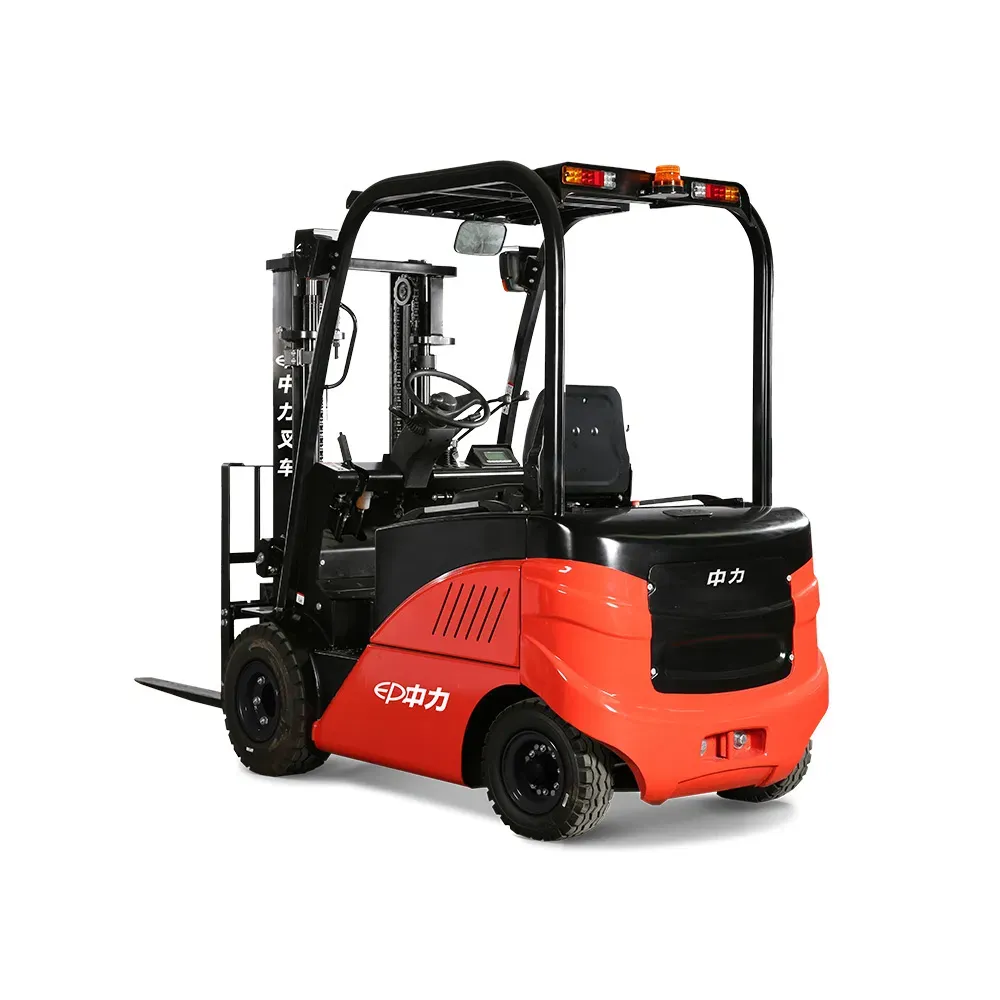

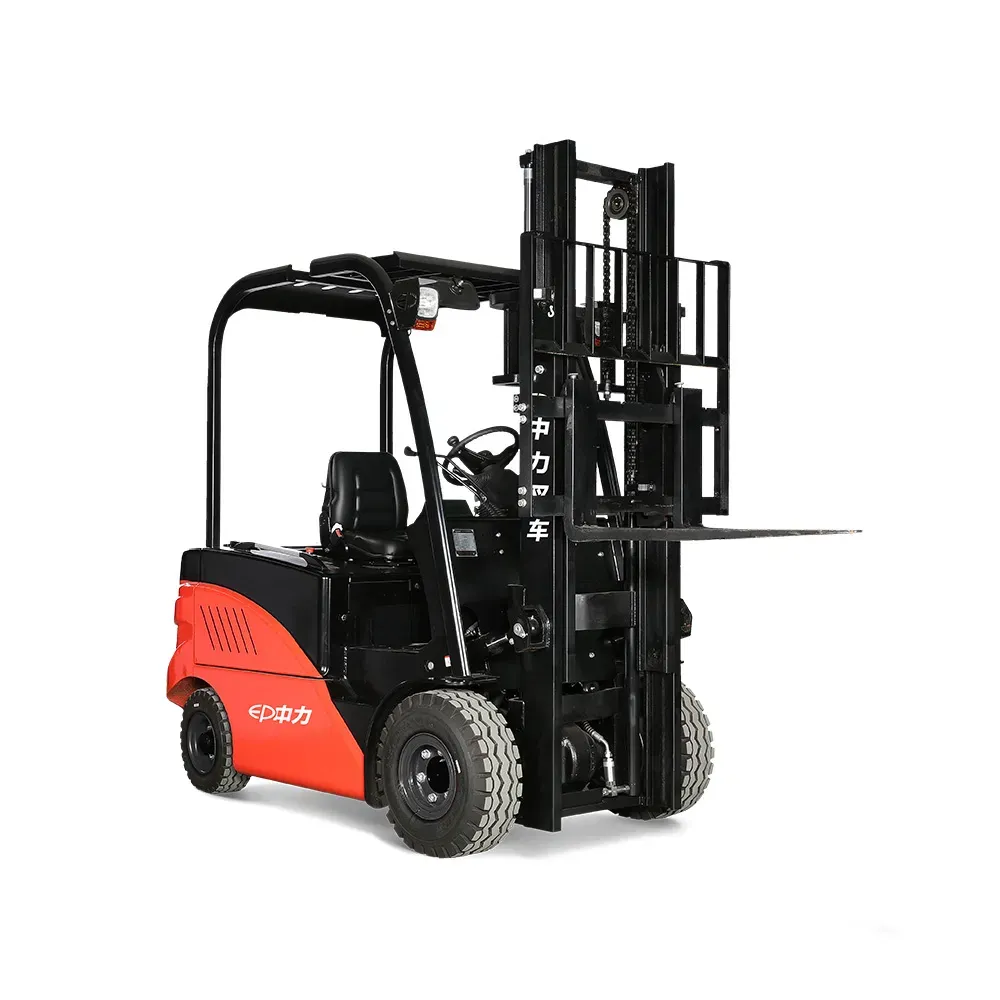

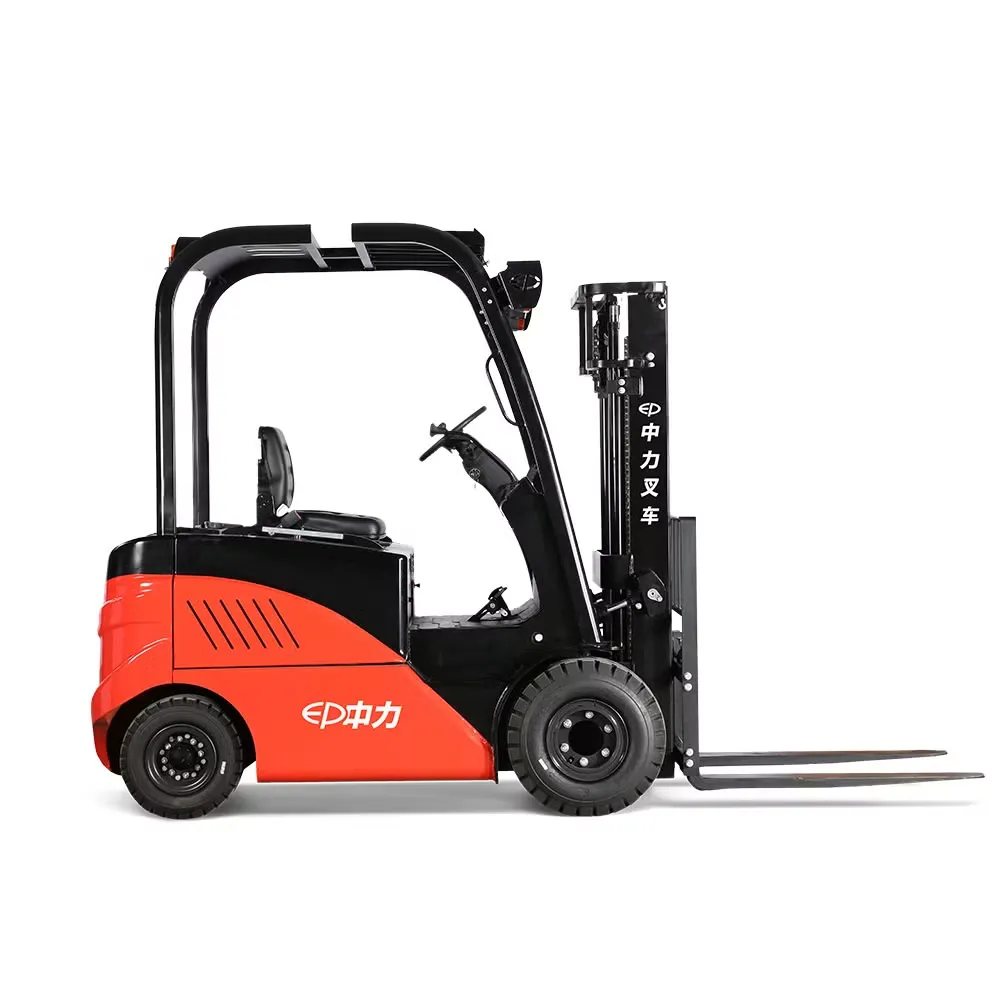

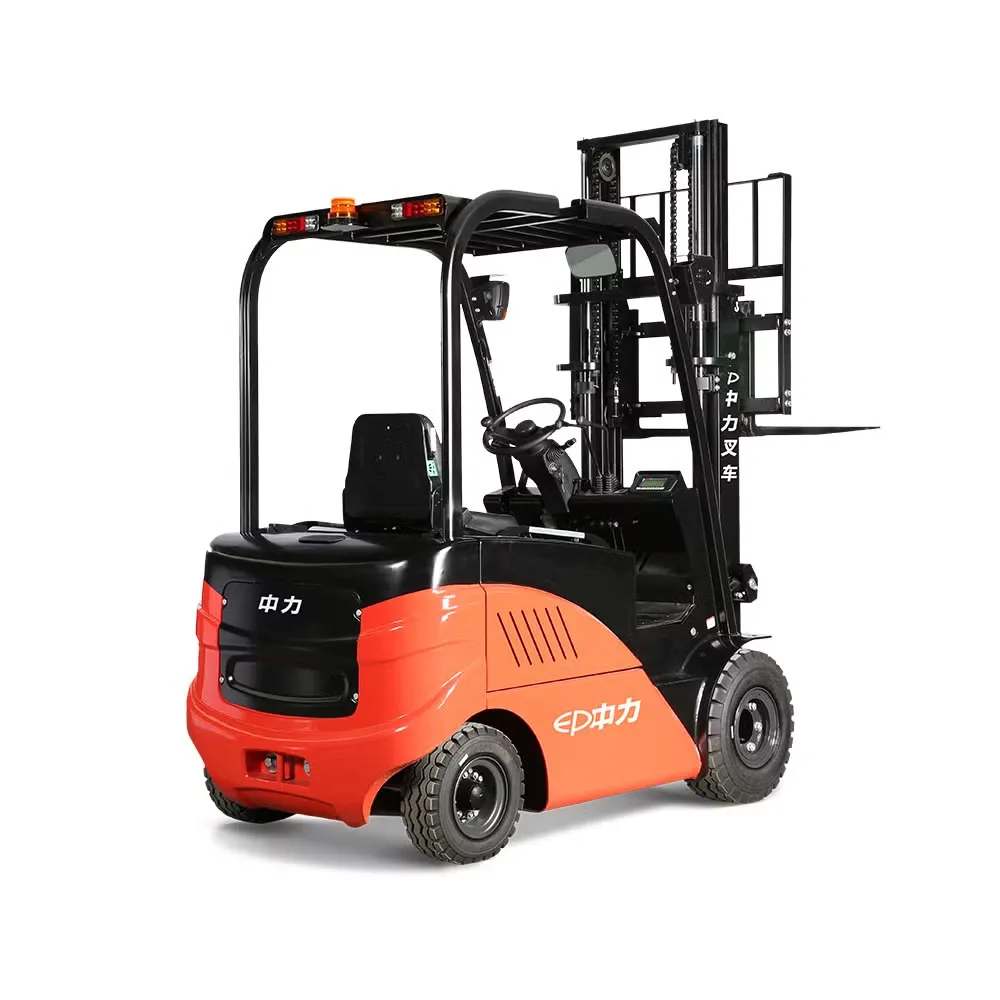

2.5t 4-Wheel Electric Counterbalance Forklift CE China Wholesale
1 Piece (MOQ)
Sichuan Juqiangda Hoisting Engineering Co., Ltd. has garnered an impressive reputation as the premier machinery exporter in China, boasting over a decade and a half of international business expertise. With a consistent annual sales figure surging past USD100 million, our esteemed organization consistently reports steady increments in export revenue year after year. Our commitment to excellence in the industry underscores our unwavering dedication to serving our global clients with the highest quality machinery and unmatched customer service.
Sichuan Juqiangda Hoisting Engineering Co., Ltd. has garnered an impressive reputation as the premier machinery exporter in China, boasting over a decade and a half of international business expertise. With a consistent annual sales figure surging past USD100 million, our esteemed organization consistently reports steady increments in export revenue year after year. Our commitment to excellence in the industry underscores our unwavering dedication to serving our global clients with the highest quality machinery and unmatched customer service.
Pre-sale service
1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers’ operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.
| Specification | Unit | LG20BVI (CPD20) | LG25BVI (CPD25) |
|---|---|---|---|
| Rated Payload | kg | 2000 | 2500 |
| Load Center | mm | 500 | 500 |
| Max Lifting Height | mm | 3000 | 3000 |
| H3 Free Lifting Height | mm | 145 | 145 |
| Fork Size (L5×W×T) | mm | 1070×120×40 | 1070×120×40 |
| Mast Tilt Angle | deg | Forward 6° / Rear 8° | Forward 6° / Rear 8° |
| Size | |||
| L1 Overall Length (with fork) | mm | 2240 | 2250 |
| W1 Overall Width | mm | 1185 | 1185 |
| H2 STD Mast Lower Height | mm | 1995 | 1995 |
| Mast Lift Full Height | mm | 4042 | 4042 |
| H4 Overhead Guard Height | mm | 2148 | 2148 |
| R1 Min. Turning Radius | mm | 2000 | 2020 |
| Wheel Tread (Front Tires) | mm | 434 | 434 |
| Wheel Tread (Rear Tires) | mm | 960 | 960 |
| Wheel Base | mm | 950 | 1550 |
| Fork Distance | mm | 240 / 1040 | 240 / 1040 |
| Min. Right Angle (1000×1200 Horizontal) | mm | 3655 | 3655 |
| Min. Right Angle (800×1200 Longitudinal) | mm | 3738 | 3738 |
| Speed | |||
| Travel (Unload / Full Load) | km/h | 13/12 (15/14.5) | 13/12 (15/14.5) |
| Lifting (Unload / Full Load) | mm/s | 430 / 300 | 430 / 300 |
| Max Gradeability (Full Load) | % | 20 | 20 |
| Self Weight | kg | 3950 | 4100 |
| Tire (Front) | / | 23×9-10-16PR | 23×9-10-16PR |
| Tire (Rear) | / | 18×7-8-14PR | 18×7-8-14PR |
| Travel Motor | kW | 11.5 | 11.5 |
| Electric Motor (Lifting) | kW | 15 | 15 |
| Controller Brand | / | Inmotion | Inmotion |
| Battery | V/Ah | 48/600 | 48/600 |
| Working Pressure | MPa | 17.5 | 17.5 |
